element Annotation3DGroup

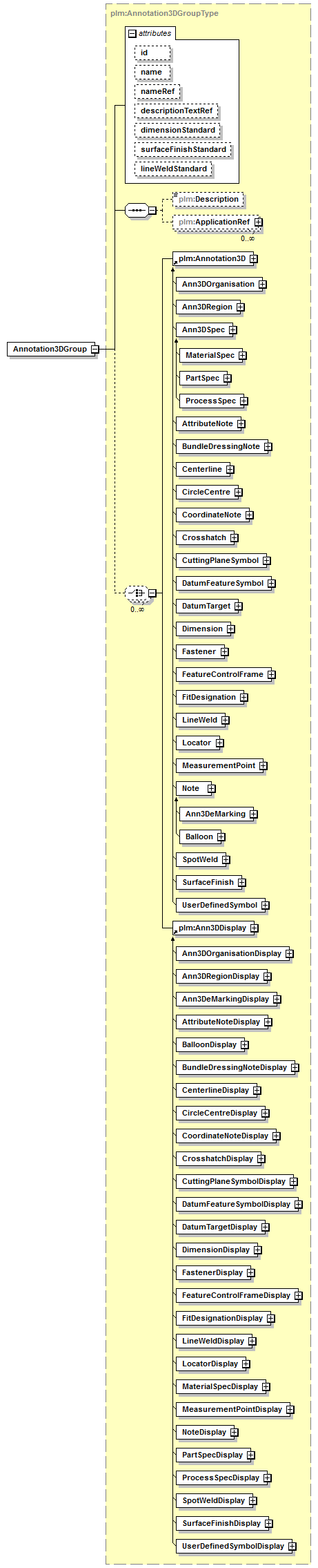

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
type	plm:Annotation3DGroupType
substitution group	plm:Attribute
properties	content  complex
children	plm:Description plm:ApplicationRef plm:Annotation3D plm:Ann3DDisplay
attributes	Name   Type   Use   Default   Fixed   Annotation id   xsd:ID   optional         name   xsd:string   optional         nameRef   plm:anyURIType   optional         descriptionTextRef   plm:anyURIType   optional         dimensionStandard   plm:Ann3DDimensionStandardType   optional         surfaceFinishStandard   plm:Ann3DSurfaceFinishStandardType   optional         lineWeldStandard   plm:Ann3DLineWeldStandardType   optional
source	<xsd:element name="Annotation3DGroup" type="plm:Annotation3DGroupType" substitutionGroup="plm:Attribute"/>
