complexType ProductRevisionViewType

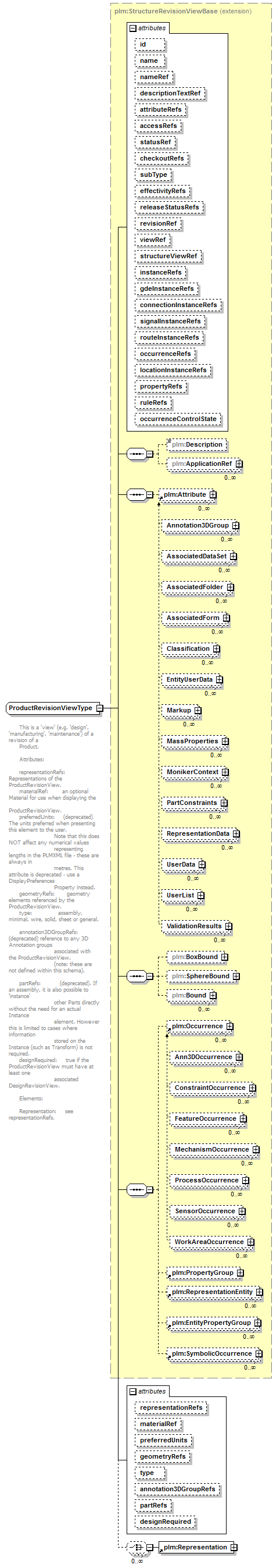

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
type	extension of plm:StructureRevisionViewBase
properties	base  plm:StructureRevisionViewBase
children	plm:Description plm:ApplicationRef plm:Attribute plm:BoxBound plm:SphereBound plm:Bound plm:Occurrence plm:PropertyGroup plm:RepresentationEntity plm:EntityPropertyGroup plm:SymbolicOccurrence plm:Representation
used by	elements  Part ProductRevisionView
attributes	Name   Type   Use   Default   Fixed   Annotation id   xsd:ID   optional         name   xsd:string   optional         nameRef   plm:anyURIType   optional         descriptionTextRef   plm:anyURIType   optional         attributeRefs   xsd:IDREFS   optional         accessRefs   plm:uriReferenceListType   optional         statusRef   plm:anyURIType   optional         checkoutRefs   plm:uriReferenceListType   optional         subType   xsd:string   optional         effectivityRefs   plm:uriReferenceListType   optional         releaseStatusRefs   plm:uriReferenceListType   optional         revisionRef   plm:anyURIType   optional         viewRef   plm:anyURIType   optional         structureViewRef   plm:anyURIType   optional         instanceRefs   xsd:IDREFS   optional         gdeInstanceRefs   plm:uriReferenceListType   optional         connectionInstanceRefs   plm:uriReferenceListType   optional         signalInstanceRefs   plm:uriReferenceListType   optional         routeInstanceRefs   plm:uriReferenceListType   optional         occurrenceRefs   plm:uriReferenceListType   optional         locationInstanceRefs   plm:uriReferenceListType   optional         propertyRefs   plm:uriReferenceListType   optional         ruleRefs   plm:uriReferenceListType   optional         occurrenceControlState   plm:OccurrenceControlEnum      implicit      representationRefs   xsd:IDREFS   optional         materialRef   xsd:IDREF   optional         preferredUnits   plm:PreferredPartUnitsType      millimetres      geometryRefs   plm:uriReferenceListType   optional         type   plm:PartTypesType   optional         annotation3DGroupRefs   plm:uriReferenceListType   optional         partRefs   xsd:IDREFS   optional         designRequired   xsd:boolean   optional
annotation	documentation       This is a 'view' (e.g. 'design', 'manufacturing', 'maintenance') of a revision of a       Product.             Attributes:             representationRefs: Representations of the ProductRevisionView.       materialRef:        an optional Material for use when displaying the                           ProductRevisionView.       preferredUnits:     (deprecated) The units preferred when presenting this element to the user.                           Note that this does NOT affect any numerical values                           representing lengths in the PLMXML file - these are always in                           metres. This attribute is deprecated - use a DisplayPreferences                           Property instead.       geometryRefs:       geometry elements referenced by the ProductRevisionView.       type:               assembly, minimal, wire, solid, sheet or general.             annotation3DGroupRefs: (deprecated) reference to any 3D Annotation groups                           associated with the ProductRevisionView.                           (note: these are not defined within this schema).                                 partRefs:           (deprecated). If an assembly, it is also possible to 'instance'                           other Parts directly without the need for an actual Instance                           element. However this is limited to cases where information                           stored on the Instance (such as Transform) is not required.       designRequired:     true if the ProductRevisionView must have at least one                           associated DesignRevisionView.             Elements:       Representation:     see representationRefs.
source	<xsd:complexType name="ProductRevisionViewType">   <xsd:annotation>     <xsd:documentation>       This is a 'view' (e.g. 'design', 'manufacturing', 'maintenance') of a revision of a       Product.             Attributes:             representationRefs: Representations of the ProductRevisionView.       materialRef:        an optional Material for use when displaying the                           ProductRevisionView.       preferredUnits:     (deprecated) The units preferred when presenting this element to the user.                           Note that this does NOT affect any numerical values                           representing lengths in the PLMXML file - these are always in                           metres. This attribute is deprecated - use a DisplayPreferences                           Property instead.       geometryRefs:       geometry elements referenced by the ProductRevisionView.       type:               assembly, minimal, wire, solid, sheet or general.             annotation3DGroupRefs: (deprecated) reference to any 3D Annotation groups                           associated with the ProductRevisionView.                           (note: these are not defined within this schema).                                 partRefs:           (deprecated). If an assembly, it is also possible to 'instance'                           other Parts directly without the need for an actual Instance                           element. However this is limited to cases where information                           stored on the Instance (such as Transform) is not required.       designRequired:     true if the ProductRevisionView must have at least one                           associated DesignRevisionView.             Elements:       Representation:     see representationRefs.       </xsd:documentation>   </xsd:annotation>   <xsd:complexContent>     <xsd:extension base="plm:StructureRevisionViewBase">       <xsd:choice minOccurs="0" maxOccurs="unbounded">         <xsd:element ref="plm:Representation"/>       </xsd:choice>       <xsd:attribute name="representationRefs" type="xsd:IDREFS" use="optional" plm:refType="plm:Representation"/>       <xsd:attribute name="materialRef" type="xsd:IDREF" use="optional" plm:refType="plm:Material"/>       <xsd:attribute name="preferredUnits" type="plm:PreferredPartUnitsType" default="millimetres" plm:deprecated="true"/>       <xsd:attribute name="geometryRefs" type="plm:uriReferenceListType" use="optional" plm:refType="plm:Entity"/>       <xsd:attribute name="type" type="plm:PartTypesType" use="optional"/>       <xsd:attribute name="annotation3DGroupRefs" type="plm:uriReferenceListType" use="optional" plm:deprecated="true"/>       <xsd:attribute name="partRefs" type="xsd:IDREFS" use="optional" plm:refType="plm:ProductRevisionView" plm:deprecated="true"/>       <xsd:attribute name="designRequired" type="xsd:boolean" use="optional"/>     </xsd:extension>   </xsd:complexContent> </xsd:complexType>

attribute ProductRevisionViewType/@representationRefs

type	xsd:IDREFS
properties	use  optional
source	<xsd:attribute name="representationRefs" type="xsd:IDREFS" use="optional" plm:refType="plm:Representation"/>

attribute ProductRevisionViewType/@materialRef

type	xsd:IDREF
properties	use  optional
source	<xsd:attribute name="materialRef" type="xsd:IDREF" use="optional" plm:refType="plm:Material"/>

attribute ProductRevisionViewType/@preferredUnits

type	plm:PreferredPartUnitsType
properties	default  millimetres
facets	Kind  Value  Annotation enumeration  millimetres enumeration  metres enumeration  inches
source	<xsd:attribute name="preferredUnits" type="plm:PreferredPartUnitsType" default="millimetres" plm:deprecated="true"/>

attribute ProductRevisionViewType/@geometryRefs

type	plm:uriReferenceListType
properties	use  optional
source	<xsd:attribute name="geometryRefs" type="plm:uriReferenceListType" use="optional" plm:refType="plm:Entity"/>

attribute ProductRevisionViewType/@type

type	plm:PartTypesType
properties	use  optional
facets	Kind  Value  Annotation enumeration  assembly enumeration  minimal enumeration  wire enumeration  solid enumeration  sheet enumeration  general
source	<xsd:attribute name="type" type="plm:PartTypesType" use="optional"/>

attribute ProductRevisionViewType/@annotation3DGroupRefs

type	plm:uriReferenceListType
properties	use  optional
source	<xsd:attribute name="annotation3DGroupRefs" type="plm:uriReferenceListType" use="optional" plm:deprecated="true"/>

attribute ProductRevisionViewType/@partRefs

type	xsd:IDREFS
properties	use  optional
source	<xsd:attribute name="partRefs" type="xsd:IDREFS" use="optional" plm:refType="plm:ProductRevisionView" plm:deprecated="true"/>

attribute ProductRevisionViewType/@designRequired

type	xsd:boolean
properties	use  optional
source	<xsd:attribute name="designRequired" type="xsd:boolean" use="optional"/>
